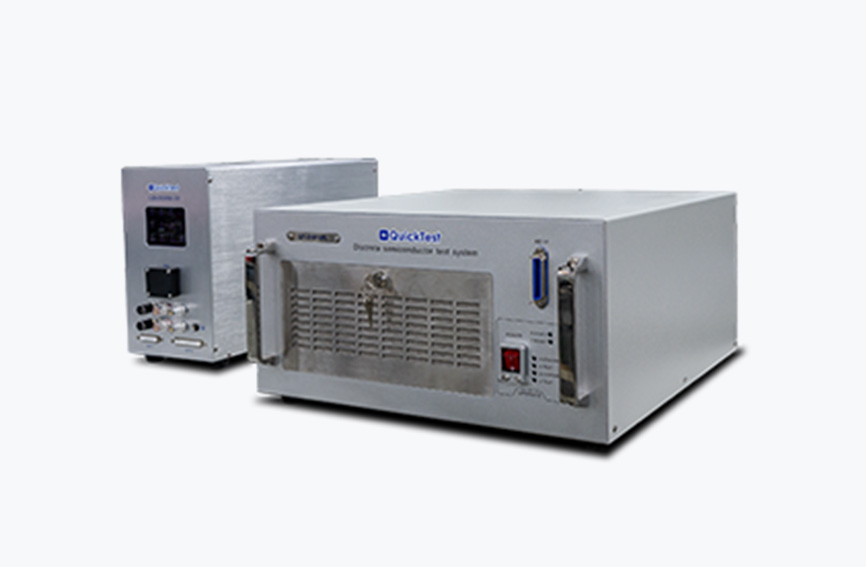

            QT-3101 UIL avalanche test


            QT-3101 UIL avalanche test is suitable for testing avalanche parameters of MOSFETs, IGBTs and diodes





















					Support double DIE











					Fast charging











					Invalid waveform saving











					Clamping function





























				Type


				QT-3101 UIL






				Advantages


				Support VDD ON(E=1/2L*I*I*BVDSS/(BVDSS-VDD)) or VDD OFF(E=1/2*L*I*I) test

         Built-in oscilloscope

         Extreme energy scan test

         Single pulse, multi-pulse or dual MOSFET testing can be set

         Can share a computer with QT-4100B to achieve unified management of test programs and data







				Main Features


				? Output measurement capability: Maximum measurement BVdss: ±3000V Maximum output ID: ±150V, ±200A

                      ? Editable VG MAX: ±30V pulse width adjustment (resolution: 1us)

                      ? Programmable inductor box load 10μH-159.9mH step 10μH

                      ? 24 programmable sorting machine interface signals
